Cinde 3IS Video optoisolator/line driver/distribution amp
A solid state device using optical isolation and independent power supplies to achieve a high degree of isolation from input to output. Essential in large installations where earth potential differences introduce video "hum bars", or as a security device when interfacing to critical facilities such as outside broadcast. Cable compensation, selectable by DIP switches, for cable runs to 400 metres. Built-in distribution amplifier provides 3 identical outputs.Images:

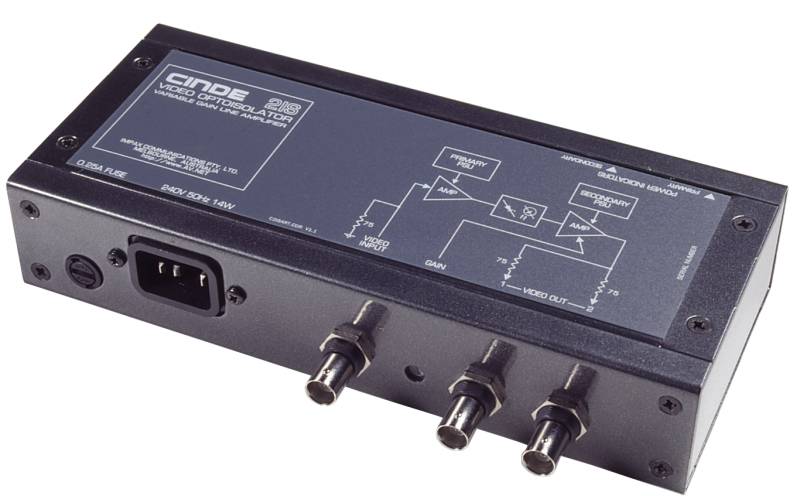

Perspective View (40K jpg)

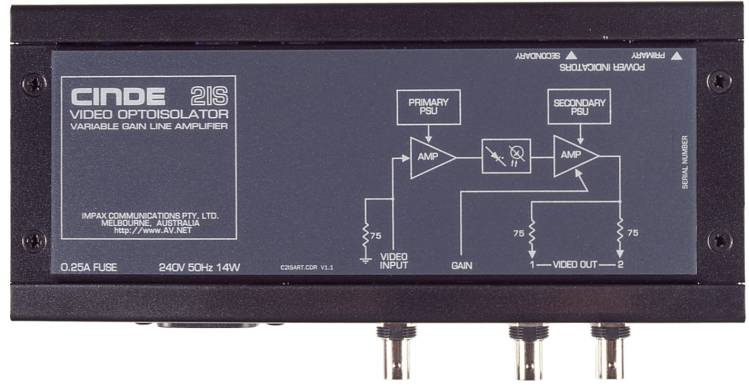

Top Panel View (35K jpg)
| Video Bandwidth | DC - 15MHz -1dB |
| Input Impedance | 75 ohm |
| Output Impedance | 75 ohm |
| Nominal Signal Level | 1Vp-p |
| Gain | Unity (internal trimpot adjustable) |
| Connections | BNC (video), IEC (power) |
| Indicators | Power LED |
| Power | 240V, 50Hz, 14W, IEC lead supplied |
| Dimensions | 300x95x44 (1RU high, rack mount brackets optional) |
| Weight | 2Kg |
| Packing | Cardboard box, 0.003m3, 2Kg |
| Warranty | 2 years |
For more info: dave@impax.com.au
