CINDE 4AVS

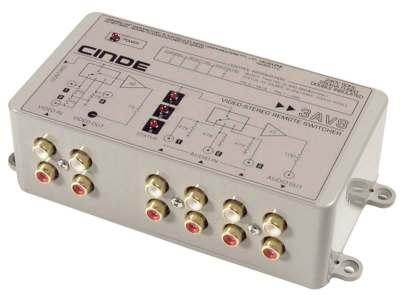

4-input, video & stereo remote switcher in compact ABS case with mounting flanges. Designed for use with control systems such as AMX or Crestron but can be controlled from a simple switch panel or parallel interface (not supplied). One of 4 inputs can be selected by momentary input closure to ground; LED's on the top cover indicate the current selection. Note that this unit can only be controlled externally. Control connector (D9) pinout is shown on top cover. Remote LED indicators may also be connected via the control port.Image: (of previous model, Cinde 3AVS, functionally identical but with only 3 inputs)
Perspective View (43K jpg)
| Video Bandwidth | DC - 9MHz |
| Audio Bandwidth | 10Hz - 22KHz |
| Distortion (audio) | <0.1% |
| Spurious signals (audio) | -72dB |
| Input Impedance | 47K (audio), 75 ohm (video) |
| Output Impedance | 100 ohm (audio), 75 ohm (video) |
| Nominal Signal Levels | 1Vp-p (video), 200mV to 2VRMS (audio) |
| Connections | RCA (video & audio) D9 (control; male on unit) |
| Indicators | Power LED, Channel indicator LED's |
| Power | 240V, 50Hz, 7W, 2-pin lead fitted |
| Dimensions | 150x80x52 deep |
| Weight | <1Kg |
| Packing | Cardboard box, 0.0015m3, 1Kg |
| Warranty | 2 years |
