Cinde 44 Video/Stereo Matrix Switcher
A very versatile 4-input, 4-output full matrix switcher with illuminated tactile keypad. Any source of video/line-level-audio can be routed to any or all outputs simultaneously. Serial control port accepts RS-232 commands from PC or automated control systems such as Crestron and AMX. Applications include field work, education, small scale production suites, corporate, medical and education installations.Images:

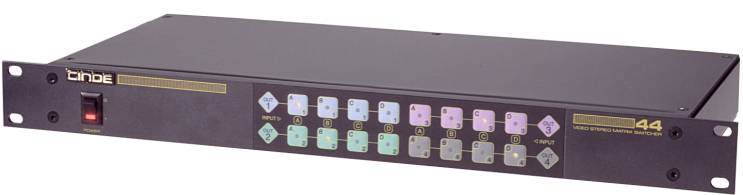

Perspective View (15K jpg)
Front View (13K jpg)

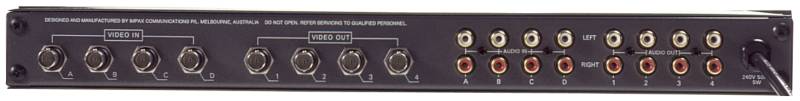

Back View (15K jpg) (older version, does not show control port)
| Video Bandwidth | DC - 9MHz -3dB |
| Audio Bandwidth | 10Hz - 22KHz -3dB |
| Spurious Signals (audio) | <72dB |
| Audio Distortion | <0.1% |
| Video diff. phase | <1 deg. |
| Input Impedance | 75 ohm (video), 47K (audio) |
| Output Impedance | 75 ohm (video), 100 ohm (audio) |
| Nominal Signal Levels | 1Vp-p (video), 200mV - 2V RMS (audio) |
| Connections | BNC (video) Gold plated RCA (audio) |
| Indicators | Power LED, channel selection LED's |
| Power | 240V, 50Hz, 7W |
| Dimensions | 483x210x44 (1RU steel case) |
| Weight | 3.5Kg |
| Packing | Cardboard box, 0.012m3, 4Kg |
| Warranty | 2 years |
For more info: dave@impax.com.au
