Cinde 8V Video Distribution Amplifier
This 8-output video distribution amplifier includes cable compensation, selectable by DIP switches, for runs up to 400 metres. A handy LED signal indicator, heavy duty construction and industry standard BNC connectors makes the Cinde 8V the obvious choice for both permanent installations and the AV hire industry.Images:

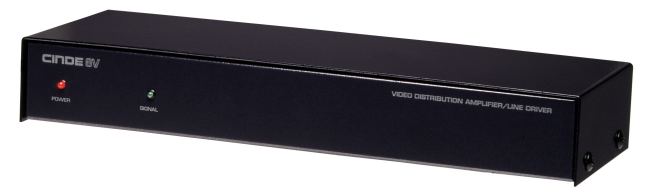

Perspective View (12K jpg)

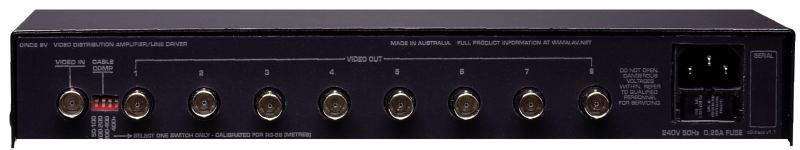

Back View (20K jpg)
| Video Bandwidth | DC - 50MHz -3dB |
| Input Impedance | 75 ohm |
| Output Impedance | 75 ohm |
| Nominal Signal Levels | 1Vp-p, unity gain |
| Controls | Cable compensation (4 x DIP switch) |
| Connections | BNC (video), IEC (power) |
| Indicators | Power LED, Signal Indicator LED |
| Power | 240V, 50Hz, 7W, IEC lead supplied |
| Dimensions | 300x95x44 (1RU high, rack mount brackets optional) |
| Weight | 2Kg |
| Packing | Cardboard box, 0.003m3, 2Kg |
| Warranty | 2 years |
For more info: dave@impax.com.au
